Silting of the PORT GRIMAUD entrance channel :


barre Port Grimaud


       For several years now, the Port Grimaud entrance channel as well as the mouth of the Giscle have been victims of silting up, which hinders the safe passage of sailing boats...

barre Port Grimaud

HISTORY :


       There is a current, called the courant Ligure, which runs along the coast of the Gulf of Saint Tropez, in the direction Sainte Maxime / Saint Tropez.
      Numerous groynes were built along the coast to retain the sand carried by the current...
      The river "La Giscle" flowed into the sea with its mouth angled to the right, pushed by the current.
      The current of the Giscle is generally very weak. Before urbanisation, wave-induced transport was predominant, creating a continuous sandy strip along the shoreline, blocking the mouth of the Giscle and creating a lagoon behind the sandy strip.
      A heavy rainfall was enough to swell the river waters, opening a natural breach in the sandy barrier. The sand transported by the river re-sanded the coastline at the bottom of the Gulf by the Ligurian current and the force of the waves.

la Giscle à  PORT GRIMAUD terrain nu avant PORT GRIMAUD

1955
Aerial view of the mouth of the Giscle (Photo IGN) ...
barre Port Grimaud

the sandpit :


       This river sand was sought after for construction purposes, hence its exploitation on the land where the future lake city will be built.
      Two sand silos, present on this site, were used as watering holes for the boats. The sand was collected and transported by train or boat to the interior of the country.


Le train venait chercher le sable les 2 silos à sable
barre Port Grimaud

Plan aérien de la Giscle
Plan of the mouth of the Giscle dating from before the 2nd World War...
barre Port Grimaud

la Giscle :


       The Giscle river rises in the Maures massif, in the commune of Collobrières, at an altitude of approximately 650 m, then crosses a large alluvial plain and ends in the Gulf of Saint Tropez. Its length is 15,5 km.

      It has many tributaries :
                          - la Môle (20,5km), the most important, with a slope of 0,5%
                          - La Grenouille (8,5 km, slope of 4%)
                          - la Garde (9,5 km, slope of 2,3%)
                          - la Verne (10 km, slope of 3,9%)
                          - La Tourré (2,5 km, slope of 4,6%)
                          - le Gilly (2,8 km, slope of 4,5%).

      The entire river has a Mediterranean hydraulic regime with a hot, dry season in summer and heavy rainfall in autumn and winter over short periods of time.

      It rains on average 842mm per year. Flows are very low from June to September (0.5m3/s per day). During heavy autumn rains the flow increases to 20m3/s on average. But it can rain between 100 and 200 mm in a single day, i.e. 30 or 40 m3/s. This sometimes leads to major flooding in the plain and therefore to more sediment being carried along and more sand accumulating in the river bed and at the mouth.

      As we shall see later, the course of the mouth of La Giscle was profoundly modified during the construction of the lake town and the Marines de Cogolin, which led to a significant silting up of the bed, thus disturbing the navigability of the channel.

      Urbanisation has been very important on the banks of the Giscle in Cogolin, La Môle and Grimaud, generating the disappearance of natural or agricultural areas which have influenced the hydraulic functioning of the waterways.


Carte d'etat major du XIXe siecle
The mouth of the Giscle on the State Major Map of the late 19th century.
barre Port Grimaud

Development of the GISCLE :


       Since the 1960s, the banks of the Giscle and its tributaries have undergone numerous developments that are not always natural :

1 - STABILISATION of the riverbed

      - by CUTTING IN either in the river bed or on the banks, sometimes with the addition of concrete for better consolidation.

      - by VEGETABLE TECHNIQUES using natural materials :
                  + The fascines (barrier of dead wood piles),
                  + cuttings of various plants to promote plant recovery,
                  + coco nets (made from coconut husks, which are biodegradable and therefore less durable than riprap),

      - by the creation of QUAIS in Port Cogolin, Les Marines de Cogolin, the shipyards, the "Riviéra" campsite and Port Grimaud.

2 - IMPROVEMENT of flows

      - by cleaning, restoration or dredging.

      The canes of Provence form cane trees that can be found along the bed of the Giscle and its tributaries. They retain the soil and thus limit bank erosion. However, care must be taken to ensure that they do not overflow into the river bed as they would impede the flow of water. They must therefore be cut regularly.

      It is also necessary to clear the bed and the banks, to eliminate dead wood and objects of all kinds (sometimes abandoned by unscrupulous people) which settle on the bottom of the river, hindering the flow of water.

3 - Creation of DIGES, drainage ditches

but also dams and landfill channels on agricultural land.

4 - Development of BRIDGES and footbridges

      These structures were intended for overland passage in connection with the growing urbanisation of the region.
      They have a very strong influence on water flow

hydraulic functioning of watercourses


      The evolution of land use and urbanisation has modified the hydraulic functioning of the watercourses. Namely:

- Urbanised soil runs off more than natural soil and agricultural soil.

- Agricultural soil runs off more than natural soil.

      The agricultural soils bordering the Giscle and its tributaries are particularly sensitive to erosion. During heavy rainfall, the phenomena of runoff and soil leaching are accentuated, which contributes to increasing silting and aggravates the phenomena of flooding.

      Moreover, after the numerous fires that destroyed the vegetation cover on the surrounding hills, these heavy rains ravaged and carried with them, as they flowed down to the plain, numerous sediments that contributed to the silting up of the river beds and the mouth of the Giscle.

types of flooding


- Flooding due to torrential flooding :
      These flash floods are due to very heavy thunderstorms with limited localization, and leading to a very rapid rise of water in rivers with a steep slope and narrow bed. This is the case of the Garde and the Grenouille stream. Materials, such as dead wood, are transported, which further encourages major flooding.

- Flooding due to runoff :
      They arrive in very heavy rainfall in urban areas, where water cannot easily infiltrate into the ground.

- Flooding of the plains crossed by the Mole and the Giscle :
      After several days of continuous rain, the riverbeds overflow.

barre Port Grimaud

Failure of the Môle dam :


       Here is a map of flooding in the event of a breach of the Môle dam :

Carte des inondations après rupture du barrage de la Mole


      This earthen dam was built in 1991 creating an artificial lake of 8 million cubic metres which supplies drinking water to 10 communes in the Gulf of St Tropez.
      Its water is treated by the Verne water treatment plant and managed by the Syndicat Intercommunal de Distribution d'Eau de la Corniche Des Maures.
      This dam is fortunately highly guarded and of daily maintenance. It is very safe and this map is for information only...

barre Port Grimaud

The floods of the Giscle :


- January 1959 : Exceptional flooding.

- 11 and 12 january 1996 : The ten-year flood caused the flooding of a large part of the Giscle plain for more than 2 days.

- 14 July 2002 : Very localized 100-year flood in the upper Giscle basin.

- 13 and 16 December 2008 : Upper flood of the Môle, the most important tributary of the Giscle.

- from 14 to 20 September 2009 : Strong flooding of the Giscle with overflow in the Pommiers district.

- from 21 to 23 October 2009 : Very high flooding of the Giscle with flooding at Pommiers, Camp Marin, and the Grimaud artisanal zone.

- 15 and 16 June 2010 : Heavy flooding of the Giscle.

- from 3 to 9 November 2011 : The equivalent of 7 months of rain in 5 days in the Giscle catchment area. Flooding of the Grimaud plain.

- 14 December 2012 : Flooding of the Môle.

- 7 and 8 March 2013 : Flooding of the Môle and Giscle rivers with flooding of the Grimaud plain.

- 26 and 27 November 2014 : November was an exceptionally rainy month. Overflowing of the Môle and Giscle rivers with flooding, during the night of the 27th, of the Pommiers district, the Grand Pont business park, Saint-Pons and the PG1 car park.

- from 18 to 23 November 2019 : A week of continuous heavy rainfall, unprecedented over such a long period, and overflowing of the Giscle at Les Pommiers, Camp Marin and the Grimaud industrial zone.

- 1st December 2019 : Very heavy rainfall throughout the day and overflowing of the Giscle at Les Pommiers, Camp Marin and the Grimaud industrial zone.

      It can be seen that floods have become more frequent since 2008...

barre Port Grimaud

      Municipal information document on MAJOR risks :


      " This document allows you to know the different situations to which our commune is exposed, as well as the measures taken to limit the consequences on the population." Alain BENEDETTO
barre Port Grimaud

Embouchure de la Giscle
Aerial view of the mouth of the Giscle before the beginning of the construction of the Marinas tended to go to the right, in the direction of the Ligurian current.

Embouchure de la Giscle en 1967
Aerial view in 1967. The Giscle was practically closed.

Embouchure de la Giscle
Aerial view in 1969. The Marines de Cogolin were emerging from the ground. The Giscle River was flowing through a small passage.
The spur on the Port Grimaud side was not built when the Marines' spur was not yet curved.
The Giscle could flow normally...
barre Port Grimaud

Projet 1962
Sketch from 1963 with an exit to the sea: the Giscle had its normal curvature.
barre Port Grimaud

Esquisse 1965
Sketch from 1965 with an exit to the sea: the Giscle had its normal curvature.
barre Port Grimaud

projet1965
Project of 1964 with exit on the Giscle: the mouth is vertical.

esquisse de 1964
Project of 1965 with exit on the Giscle.


      Construction of Port Grimaud : from 1966
      Construction of the Marines de Cogolin : from 1968 to 1980.
      Construction of Port Cogolin : 1982


barre Port Grimaud

Construction of piers :


      Work began in 1966 at PORT GRIMAUD. For a long time, the architect hesitated, as we have seen: sometimes the exit was on the Giscle, sometimes on the sea... After a strong flood of the Giscle which flooded the nascent construction site of the lakeside city, the choice was definitively made for the sea.

       Between December 1966 and February 1968, while the architect was working on what was to become his lake city, the beach receded by 20 to 25 metres!!!

       François SPOERRY decided, on the advice of the Ponts et Chaussées engineers of the time, to build a jetty that would neutralise the action of the wind and sea and hold back the sand...
       The work was entrusted to the SPADA team of specialists from Nice led by Maurice CARUSO, and began on 15 March 1968.

       The first step was an experimental spur that would serve as the base for the future pier. It was straight :

jetee port grimaud

      The first experimental spike.

       Opened at the beginning of the summer of 1968 for the pleasure of the first owners and summer visitors, the channel was closed from mid-October 1968 to the spring of 1969 in order to extend the pier with a curved breakwater.
       Once this single groin was completed, the shoreline was fully stabilised and the beach on its northern side (PG1 beach) was seen to be growing.
       The sand carried by the Giscle was deposited on (and in front of) the beach of PG2.

      Work on the Marines de Cogolin began in 1968, when a triangle-shaped pier was created.

      The depth of the Port Grimaud entrance channel was originally about 5m. That of the Giscle was 3m.
      Then came the gradual silting up...


PIEGE à SABLE


      A letter from an engineer of the Ponts et Chaussées de Toulon in charge of the Giscle file, dated 20 January 1975, explains that the orientation of the dikes favoured the creation of a sand trap in front of the small beach of PG2.



barre Port Grimaud

The sandpit on the Giscle :


      For many years, on the Giscle, a sand pit was in activity behind the Renault garage on the Cogolin side and, thanks to it, there was no talk of silting...
      It closed down about 15 years ago, probably because of the new sand extraction regulations...

      Hence the question: Could a new sand pit at this location address much of the silting?


barre Port Grimaud

National Centre for Ocean Exploitation :


      This centre published a very interesting report on "RESEARCH IN SEDIMENTOLOGY APPLIED TO THE ROCKY LITTORAL OF PROVENCE ".

Embouchure de la Giscle 1975


      In this report, there are 2 drawings showing, by arrows, the flow of the waters of the Giscle, the "jetties" of the Marines and that of Port Grimaud do not interfere with this flow which goes offshore...

Embouchure de la Giscle 1975


      In this report, it is stated that: "the course of the Giscle has moved southwards, under the influence of a littoral transfer along the coastline to the NE. of the Bay of St Tropez. This sedimentary input was increased by the load of the Préconil and directed from East/North-East to West/South-West.

      By moving southwards, the Giscle has left behind three inlets, lined with ponds and marshes, destroyed by the development of the Port Grimaud Marina
. "

barre Port Grimaud

DRAGGING :


      The sediments, mainly composed of sand, accumulating at the bottom of the river, hinder navigability, hence the obligation to dredge the river bed.
      This sand is recovered to replenish the beaches.
      The first recorded dredging took place in 1995 between the RN98 bridge and the mouth, reducing the depth of the Giscle to 2.5m. 12 650m3 were thus taken.
      Port Grimaud2, in charge of the maintenance of the river in 2000, carried out 2 dredgings in 2002 and 2003. PG2’s ASl carries out 2 bathymetries per year to monitor the depth under the boats.
      The legislation on dredging was less rigorous than today and the silting up was less important than today.

November 2011 :


      This month of November was marked by heavy rainfall, which caused the creation of the sandbank, deposited in front of the PG2 beach, between the mouth of the Giscle and the entrance channel of Port Grimaud.


During the Port Council meeting held on 20 December 2011, alerted by a member of this council, the Commune of Grimaud became aware of the problem and hastened to proceed with the emergency lighting of the dangerous zone.


      Since 2011, perhaps because of global warming, violent floods have followed one another, each time moving a significant volume of sand that has come to "enrich" the sandbank until it reaches a volume of 30 000 m3 approximately, constituting an obstacle to navigation in this area located outside the conceded port perimeter.

barre Port Grimaud

REMARKS :


      The most important silting is located on the Domaine Publique Maritime (DPM). Only the "administration" should normally intervene.
      On the other hand, the 2 entrances, Giscle and Plan d'eau de Port Grimaud are part of the concession and are the responsibility of PG1, PG2 and the SNPG of PG3. They must ensure their desilting and safe access.

      These 3 entities have collectively participated in the costs of dredging concerning this area for several years while by a notarial act of 4 January 1973 constituting "easements between the three entities", it is written on pages 11, 12 and 15, that PG1 grants to PG2 and SNPG "an easement of passage and free circulation across the sea outlet", that "This easement shall confer upon any owner of the dominant lands the right to pass and circulate freely by boat or other navigational craft across the sea outlet" and under the heading "distribution of charges", "In respect of the bodies of’ water bodies, canals and the river La Giscle, each of the servient funds shall maintain, dredge and mark them at its own expense"...

      Therefore, PG1 had to bear the costs of dredging the entrance channel alone (outside the DPM) and the costs of dredging the Giscle had to be borne by PG2...


This decision was taken by the architect at that time because the silting up was low, PG2 was emerging while PG1 was already receiving revenues from visitor parking and mooring rentals.


      PG2 did not appreciate at all, having undertaken to share the costs, that PG1 used somewhat authoritarian methods, deciding alone on the conditions of the dredging, the choice of the company, the acceptance of the estimate for the work without consulting the other entities, contenting itself with sending the invoice for the work carried out without any other comments with a cost of the m3 of sand removed at 75€ whereas in 2017, the municipality invoiced for this same m3 at 25€ !...
      With the agreement of PG2's owners, the President of PG2 refused to participate in the extraction costs, which led to a logical conflict with PG1, which held its ground.

      The ASP of PG1, on 20 January 2016, and the ASL of PG2, on 23 March 2016, carried out bathymetric surveys which revealed particularly dangerous conditions of access to the entrance channel of the Giscle in its part situated on the Domaine Public Maritime (DPM); Access to the entrance channel of the Giscle in its part situated on the Domaine Public Maritime (DPM), particularly dangerous, with sand outcropping over more than half the width of the mouth. Boats could no longer pass each other at this point without risking running aground on the sandbank.

      An initial safety dredging of 2 700 m3, in the entrance channel on the Giscle side, in the area located on the Public Maritime Domain took place from 27 June to 22 July 2016 and made it possible to re-establish safe access to the Giscle entrance channel. This work was carried out by the AZOTE company under the direction of ASP1 which had undertaken the dredging of the conceded entrance channel at the same time.
      The costs incurred by the PG1 ASP for this summary dredging operation on the unconcessioned part amounted to 93 636 € TTC. The Town Hall reimbursed them for this sum.

      Then, at the beginning of 2017, in the absence of an agreement between the port concessionaires and the Commune, notably on the issues of taking charge of the dredging work and its financial distribution, the Commune proceeded to extract approximately 15,550 m3 of sand. The sand extracted from this dredging operation was used to refill the municipal beaches with sand.

Extraction du sable

Les plages qui ont reçu le sable extrait


Sometimes, the floods of the Giscle, when they are not combined with a strong sea pushed by a violent east wind, are beneficial for the desilting because they "clean" the bed of the river, chasing the deposited sand out to sea...

barre Port Grimaud

TO BE MEDITATED :


      PORT GRIMAUD is not alone in suffering the silting up of the Giscle:
      The river is bordered by many owners, some of whom use it regularly:
- Les Marines de Cogolin with numerous moorings and a launching area.
- Port Cogolin, which can only be reached by the Giscle, and has many moorings on the 'gisclet
- The shipyards 'Villanova', 'Team Boat Service', 'Simons', 'OMV'
- The campsite 'Holiday Marina' with a long linear layout.
- The Hotel 'Le Ginestel'
      The other riparians are often private individuals. Numerous agricultural lands also border the Giscle, bringing numerous alluvial deposits by runoff during the rains... Some of the land is municipal.

      It should be logical that ALL these residents should contribute to the cost of clearing the land !


barre Port Grimaud

SE.D.RI.PORT :


      'SE.D.RI.PORT', (Sedimenti, dragaggi, rischi portuali), is a European project initiated by the Region of Sardinia in partnership with the Department of VAR, the Universities of Cagliari and Toulon, the Province of Livorno, ARPAL Liguria and with the objective of finding a common solution to the problem of silting up ports.
      In 2018, the commune of GRIMAUD, as part of this project, launched a call for tender for a "hydrosedimentary modelling of the area before Port Grimaud".
      The company "CORINTHE Ingénierie" won the contract.
      In its final report, the company proposed 2 solutions:

Les 2 solutions


      - 1st SOLUTION: Remove the bend in the Marines decogolin dam
      - 2nd SOLUTION: Modify the protective dikes at the entrance to Port Grimaud.

Résultat des 2 solutions


      These 2 solutions, unfortunately, did not address the silting problem in its entirety, hence the proposed solution :

Trap the sediments upstream of the Giscle to prevent them from reaching the mouth

RAPPORT de CORINTHE Ingénierie
barre Port Grimaud

AUDIT of the MAIRIE :


      Port Concessions Audit and Expertise 2019 published on 11 December 2020.

      This audit shows me that :
- There is no visible mess on the sheet piling
- Sheet pile thickness greater than 2.5 mm
- The operation of the cathodic protection system is normal
- There are no serious disorders on the surface docks
- There are no serious disorders on the submerged structures.

      It also notes that the cost observed for a space appears to be much lower than the market price and defines a target balance between co-ownerships and the commune on the following points :
- The historical advantage is to be reconsidered
- The Commune must draw resources from its assets
- The Commune is an actor in the development of its territory
- However, the value and attractiveness of private land will remain linked to the attached berths.

      It concludes that the main items of capital expenditure from 2025 onwards will be :

- The development of the entrance channel to reduce silting and pacify the water, and thus exploit the new space created by the creation of 45 additional public moorings. Estimated cost : 7,4 M€(valeur 2019).

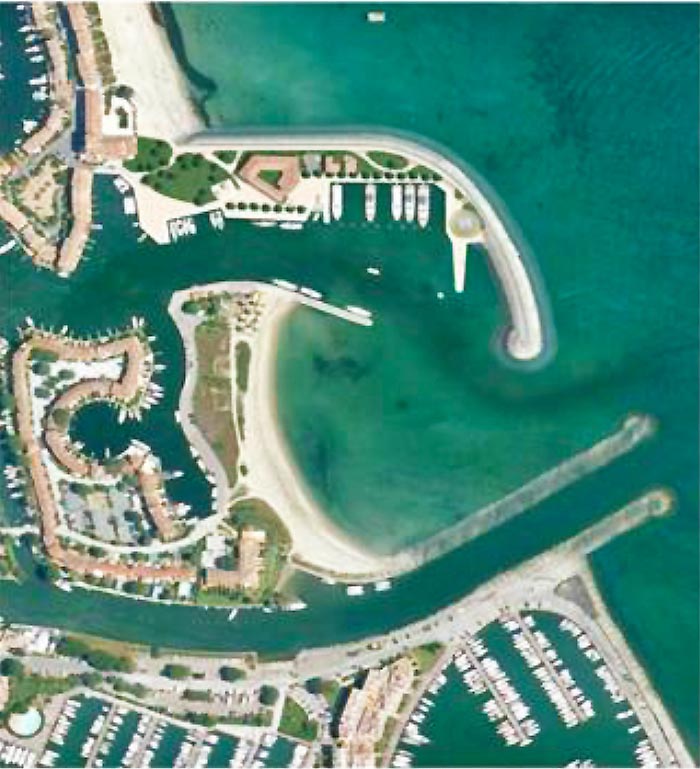

      It takes up the CORINTHE Ingénierie study with the following plan :

Passe de PORT GRIMAUD


      We discover :
- 14 moorings of 10x3,70m
- 12 moorings of 12x4,20m
- 5 moorings of 15x5m
- 4 moorings of 21x6m
- 6 moorings of 25x6m
- 4 moorings of 30x8m.

      At today's prices, these moorings could bring in around 93,000 euros per year.

- Doubling of existing sheet piling with PVC sheet piling (and filling the space with concrete). Cost : 4500 euros de ml., either for the entire length of the quay : 58,5 M€ HT distributed as follows :

- PGI to be carried out between 2025 and 2030: 6 km of quay for a total of 27 M€ HT ;
- PGII to be carried out between 2030 and 2035: 4km of quay for a total of 18 M€ HT ;
- PGIII to be built between 2030 and 2040: 3km of quay for a total of 13,5 M€ HT.

      Everything will be decided during the negotiations between the co-owners and the town hall...

What to do ?


     In March 2021, the desilting work was abruptly stopped by decision of the municipality at the beginning of the year. Only half of the sand that was supposed to be extracted has been extracted.
     This sand is a calamity that weighs on our expenses. In 2021, the removal of the sand, which did not take place, should have cost some 110 euros per square metre, compared with about 30 euros in previous years, i.e. a total bill of some 500,000 euros; !
     Sand extraction is becoming more and more restrictive due to numerous and sometimes "extravagant" ecological standards. The river (or rather the river) Giscle is no longer polluted by the agricultural fields along its banks: the farmers have made enormous efforts to reduce as much as possible the pesticides and other pollutants that are dangerous for our health. There are no companies along the river either.
     The water studies (to be checked) show only a few traces of chlorides which are not dangerous. But the legislation, stupid as it is, exists and must be respected: In particular, sand that is too salty, and therefore unfit for use in construction, but also too greyish to be used for beach nourishment, must be transported By truck to a specialised landfill located several dozen kms from Port Grimaud. The pollution of these trucks is much more important than this harmless sand which could very well be poured on the beaches. Its slightly black colour would dilute with time, sun and possible rain, to find a normal sandy colour… This is what happened in previous years !
     As we have seen, in the conclusions of the audit published by the town hall, it is envisaged to modify the groynes bordering the entrance channel, orienting it to the left, which would avoid the accumulation of sand in the wrong place. This is surely the most efficient way to avoid sand blocking the entrance to the city! But these modifications have a cost: 7,5 million euros (according to the audit) which would be financed only by the co-owners of PG1 !

     There is matter to discuss with the State which, within the framework of the GEMAPI (Management of aquatic environments and flood prevention), can finance totally (don't dream!) or more surely in part, these million euros of work. There must also be aid from Europe...
     All this should be part of the proposals put forward by a united Port Grimaud, during the discussions with the state for the renewal of the concession…
     To be continued...

barre Port Grimaud


  the work of François SPOERRY...




© Yves Lhermitte 2022   Reproduction prohibited without permission...
